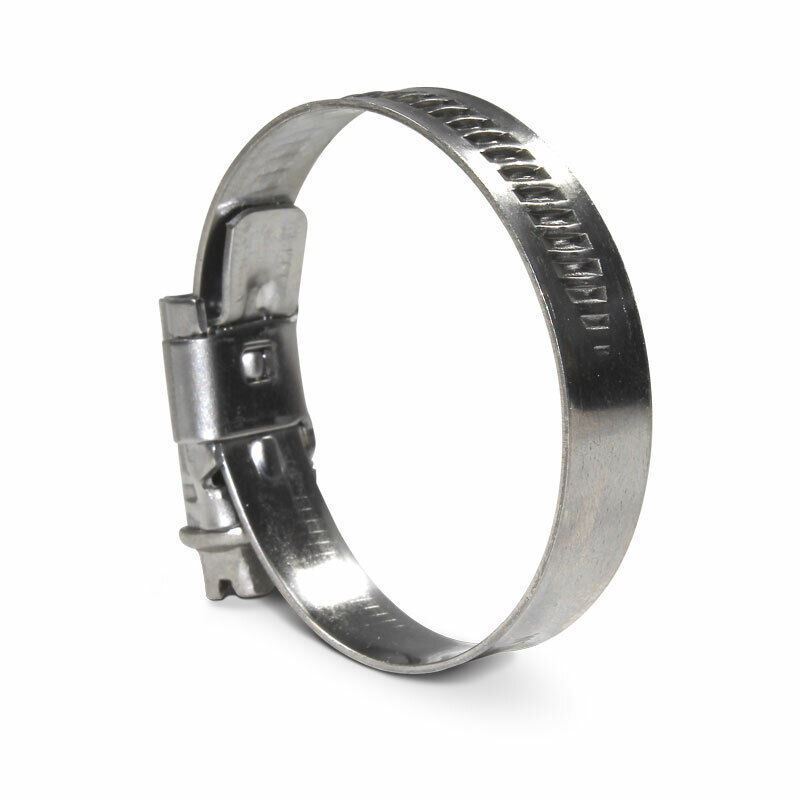

Mikalor Or Kale Worm Drive Hose Clamps Jubilee Clips Stainless Steel Pipe Clip
Specifications
| Size- | 20-35mm |
| Brand | Mikalor |
| Country Of Origin | United Kingdom |
| Drive Style | Worm Drive |
| End Type | Closed |
| Grade | AISI 430, AISI 304 |
| Grip Range | 8mm 90mm |
| Head Style | Flat Head |
| Item Diameter | 6mm - 140mm |
| Item Diameter (Interior) | 6mm - 140mm |
| Item Length | 145 |
| Screw Size | 6mm / 7mm |
| System Of Measurement | Metric |
| Thread Size | 6mm / 7mm |
| Type | Worm Drive Hose Clamp |
| Unit Type | Unit |
| Feature 1 | Light weight |
| Feature 2 | Low profile |
| Application | Hose Pipe Clamping |
| Band Width | 9mm / 12mm / 15mm |
| Brand 2 | Kale |
| Clamp Type (2) | Jubilee |
| Clamp Type (3) | American Style |
| Clamp Type (4) | Worm Drive Hose Clips |
| Feature | High torque pressure |
| Feature 7 | Rounded Edges |
| Item Type | Worm Drive Clamps |
| Material (1) | Mild Steel Zinc Plated |
| Material (2) | 430 Stainless Steel |
| Material 3 | 304 Stainless Steel |
The Worm drive has been in engineering applications for many years previously but the use of it in band clamps gave considerable flexibility to the range of sizes one clamp could cover together with its ability to offer measured incremental effects. The major benefits of the Jubilee type clip is the ease of use, the large clamping diameter and the cost-effectiveness. Mikalor Clamps: Thanks to the exclusive design of the housing and the high-strength screw, the ASFA L Worm-Drive Clip has excellent performance while being at the same time very compact. The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage. Kale Clamps: The screw housing is a mechanical locking system which improves effective tightening and helps e.
